PortugueseCDT-MOD-2000-Duct Carbon Dioxide Transmitter
Product Details:
- Dimension(L*W*H) 99 x 90 x 32 Millimeter (mm)
- Connection 5-screw terminal block (24 V, GND, CO2, rH, T)
- Application CO2 levels of incoming and return air in ventilation system
- Accuracy CO2: 40 ppm + 2 % of reading %
- Voltage 24 VAC or VDC 10 % Volt (v)
- Color white
- Weight 150 Grams (g)
12,500.00 INR/Piece
X
Price And Quantity
- 1 Piece
- 12,500.00 INR/Piece
Product Specifications
- 99 x 90 x 32 Millimeter (mm)
- CO2 levels of incoming and return air in ventilation system
- CO2: 40 ppm + 2 % of reading %
- 99 x 90 x 32
- 5-screw terminal block (24 V, GND, CO2, rH, T)
- 24 VAC or VDC 10 % Volt (v)
- white
- Duct mount CO2 transmitters with temperature for building automation systems
- max 230 mA (at 24 V) + 35 mA for each voltage output Milliampere (mA)
- ABS
- 150 Grams (g)
- Electrical
- Measure CO2 & temperature level in duct
Trade Information
- All India
- CE marking: EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU
Product Description

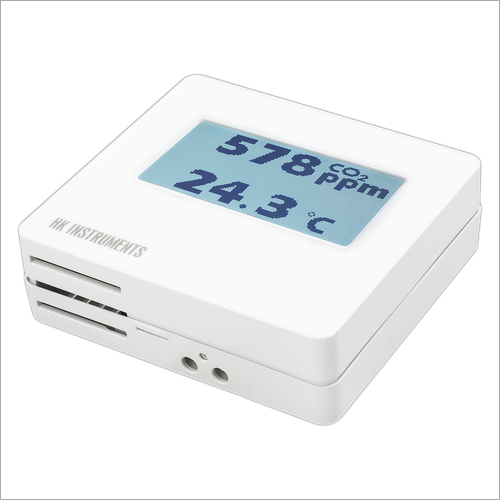

The CDT-MOD-2000-Duct Carbon Dioxide Transmitter detect CO2 concentration and temperature and are both affordable and multifunctional. This device can be mounted in a duct or on a wall. The CDT2000 is the first CO2 measurement instrument with a big touchscreen display that allows for simple setting and modification. The CDT2000 Duct is a low-cost method for detecting total CO2 concentrations in duct systems. The transmitter integrates CO2 concentration, temperature, relative humidity, and VOC readings into a single, simple instrument.
Specification
| Measuring Units | ppm and Degree C |
| Measurement Range | CO2: 400-2000 ppm |
| Model Name/Number | CDT-MOD-2000-Duct |
| Display Type | Digital |
| Brand | HK Instruments Oy |
| Material | ABS |
| Operating Temperature | 0 ... 50 C |
| Supply Voltage | 24 VAC/VDC +-10 % |
| Protection Standard | IP54 |
