Differential Pressure Switch, 930.8x

Product Details:

Rated Voltage 250 VAC Volt (V)
Max. Current 1.5 Ampere (amp)
Mechanical Life Mechanically more than 1000000 cycles Minutes
Protection Level IP54 or IP65
Temperature Range -40 TO 80 Degree C Celsius (oC)
Contact Resistance 15 A / 250 V AC
Max. Voltage 250 VAC Volt (V)
Share Your Product:

500 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Price And Quantity

Price 500 INR/Piece
Minimum Order Quantity 10 Piece

Product Specifications

Operating Temperature 40C to +85DegreeC Celsius (oC)
Temperature Range -40 TO 80 Degree C Celsius (oC)
Protection Level IP54 or IP65
Max. Voltage 250 VAC Volt (V)
Mechanical Life Mechanically more than 1000000 cycles Minutes
Contact Resistance 15 A / 250 V AC
Max. Current 1.5 Ampere (amp)
Rated Voltage 250 VAC Volt (V)
Weight 150 g Grams (g)

Trade Information

Main Domestic Market All India
Certifications RoHS Directive; Gas Appliance

Product Description

Differential pressure switch 930 adjustable from 20 to 5000 Pascal
Adjustable differential pressure switch for monitoring overpressure, vacuum and differential pressure of air or other non-combustible, non-aggressive gases.

The switching pressure can be adjusted without a pressure gauge using a scaled adjustment knob. Various versions with overlapping adjustment ranges between 0.2 mbar and 50 mbar are available for this purpose. As standard, the pressure switch is equipped with a transparent cover of protection class IP54.

NEW: This series is also available with an ATEX type examination.

Application:
Monitoring air filters and ventilators
Monitoring industrial cooling-air circuits
Overheating protection for fan heaters
Monitoring flows in ventilation ducts
Controlling air and fire-protection flaps
Frost protection for heat exchangers

Setting Range:

Type	Adjustable switching points between	Maximum operating pressure
930.80	20 and 200 Pa	10 kPa
930.80B	20 and 300 Pa	10 kPa
930.84	30 and 400 Pa	10 kPa
930.83	50 and 500 Pa	10 kPa
930.85B	100 and 1000 Pa	10 kPa
930.85	200 and 1000 Pa	10 kPa
930.86	500 and 2500 Pa	10 kPa
930.87	1000 and 4000 Pa	10 kPa
930.87B	1000 and 5000 Pa	10 kPa

Temperature range:

Medium and ambient temperature from -20DegreeC to +85DegreeC

Storage temperature from -40DegreeC to +85DegreeC
Diaphragm material:
Silicone, free of gas emissions.
Pressure connection:
2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm.
Electrical rating:
Standard version: max. 1,5 A (0,4 A) / 250 VAC
Low voltage version: max.0,1A / 24VDC.
Electrical connection:
Tab terminals 6.3x0.8 mm in accordance with DIN 46244 or push-on screw terminals.

Protection class:
IP 54 with cover
IP 65 with cover

Specification

Diaphragm Material

Silicone, free of gas emissions

Model Name/Number

930.8x

Media Type

air, non-combustible and non-aggressive gases

Contact System Type

SPDT

Electrical Rating

Standard version: max. 1,5 A (0,4 A) / 250 VAC, Low voltage version: max.0,1A / 24VDC.

Electrical Connection

Tab terminals 6.3x0.8 mm in accordance with DIN 46244 or push-on screw terminals. Cable conduit with

Brand

Beck GmbH

Ambient Temperature

-20 Degree C to +85 Degree C

Ce Conformity

Low Voltage Directive; RoHS Directive; Gas Appliance Directive; ATEX Directive

Range Setting

via adjustable knob

Protection Class

IP 54 & IP 65

Pressure Connection

2 plastic pipe connection pieces (P1 and P2), external diameter 6.0 mm.

Pressure

20 - 200 Pa (minimum) & 1,000 - 5,000 Pa (maximum)

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Pressure Switch' category

ATEX Differential Pressure Switch, 930 Ex Minimum Order Quantity : 1 Max. Current : 60 mA Ampere (amp) Protection Level : IP54 Price : 6500.00 INR/Piece Operating Temperature : 20C to +85Degree C Celsius (oC) Rated Voltage : 30 VDC Volt (V) Max. Voltage : 30 VDC Volt (V) Weight : 150 g Grams (g) Mechanical Life : Mechanically more than 1000000 cycles Minutes Material : ABS Temperature Range : 40 TO 80 Degree C Celsius (oC)

Send Inquiry

Air Differential Pressure Switch, PS Minimum Order Quantity : 10 Max. Current : 3A Ampere (amp) Protection Level : IP54 Price : 600 INR/Piece Operating Temperature : 20 to 60 Celsius (oC) Rated Voltage : 250 VAC Volt (V) Weight : 150 g Grams (g) Material : ABS Temperature Range : 20 60 Celsius (oC)

Send Inquiry

ATEX Pressure Switch, 901P Ex Minimum Order Quantity : 5 Max. Current : 45 mA Milliampere (mA) Protection Level : IP54 Price : 7460 INR/Piece Operating Temperature : 20C to 85 Degree C Celsius (oC) Rated Voltage : 30 VDC Volt (V) Max. Voltage : 30 VDC Volt (V) Weight : 30 to 300 g ( depend on housing material ) Grams (g) Mechanical Life : Mechanically more than 1000000 cycles Minutes Temperature Range : 40 TO 80 Degree C Celsius (oC) Product Type : Mechanical Switch

Send Inquiry

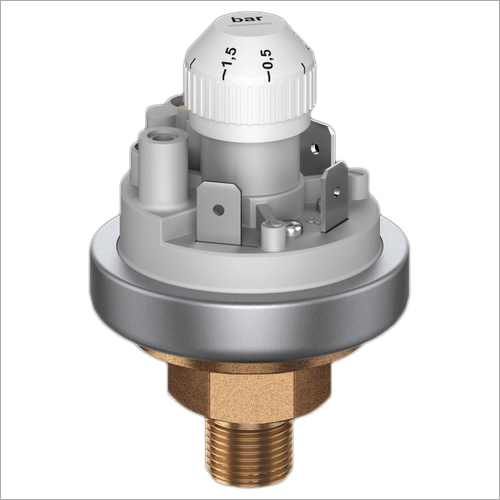

Pressure switch, 901P Minimum Order Quantity : 5 Max. Current : 6 A Ampere (amp) Protection Level : IP65 Price : 2500 INR/Piece Operating Temperature : 20C to +85 Celsius (oC) Rated Voltage : 250 VAC Volt (V) Max. Voltage : 250 VAC Volt (V) Mechanical Life : Mechanically more than 1000000 cycles Minutes Material : NBR diaphragm
